Android WebView Example

Android WebView is used to display web page in android. The web page can be loaded from same application or URL. It is used to display online content in android activity.

Android WebView uses webkit engine to display web page.

The android.webkit.WebView is the subclass of AbsoluteLayout class.

The loadUrl() and loadData() methods of Android WebView class are used to load and display web page.

Let's see the simple code to display javatpoint.com web page using web view.

WebView mywebview = (WebView) findViewById(R.id.webView1);
mywebview.loadUrl("http://www.javatpoint.com/");

Let's see the simple code to display HTML web page using web view. In this case, html file must be located inside the asset directory.

WebView mywebview = (WebView) findViewById(R.id.webView1);
mywebview.loadUrl("file:///android_asset/myresource.html");

Let's see another code to display HTML code of a string.

String data = "<html><body><h1>Hello, Javatpoint!</h1></body></html>";
mywebview.loadData(data, "text/html", "UTF-8");

Android WebView Example

Let's see a simple example of android webview.

activity_main.xml

File: activity_main.xml

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity" >

    <WebView
        android:id="@+id/webView1"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_alignParentTop="true"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="42dp" />

</RelativeLayout>

Activity class

File: MainActivity.java

package com.example.webview;

import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;
import android.webkit.WebView;

public class MainActivity extends Activity {

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_main);

		WebView mywebview = (WebView) findViewById(R.id.webView1);
		 //mywebview.loadUrl("http://www.javatpoint.com/");

		/*String data = "<html><body><h1>Hello, Javatpoint!</h1></body></html>";
	    mywebview.loadData(data, "text/html", "UTF-8"); */

		mywebview.loadUrl("file:///android_asset/myresource.html");
	}

	@Override
	public boolean onCreateOptionsMenu(Menu menu) {
		// Inflate the menu; this adds items to the action bar if it is present.
		getMenuInflater().inflate(R.menu.activity_main, menu);
		return true;
	}

}

download this android example

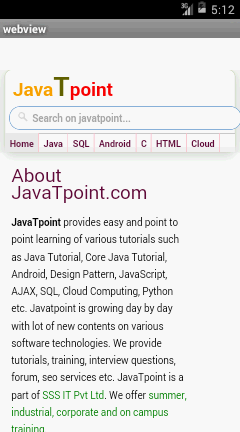

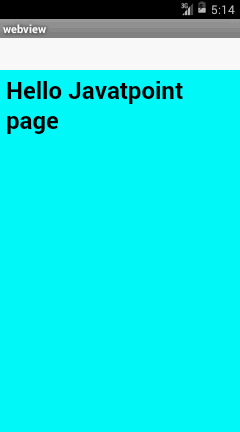

Output:

Let's see the output if you load the HTML page.
